Cadillac Wheel Spacers (Car)
| Model | YEAR | BOLT PATTERN | STUD SIZE | HUB DIAMETER |
| ALLANTE | 87′ – 93′ | 5×115 | 12×1.5 | 70.3 |
| ATS | 13′ – 19′ | 5×115 | 12×1.5 | 70.3 |
| ATS V | 16′ – 18′ | 5×120 | 14×1.5 | 66.9 |
| BROUGHAM-FWD | 85′ – ON | 5×115 | 12×1.5 | 70.3 |
| CATERA | 97′ – 01′ | 5×110 | 12×1.5B | 65.1 |
| CIMMARON | 81′ – 88′ | 5×100 | 12×1.5 | 57.1 |
| CT4 | 2020+ | 5×120 | 14×1.5 | 66.9 |
| CT5 | 2020+ | 5×120 | 14×1.5 | 66.9 |
| CT6 | 16′ – 20′ | 5×120 | 14×1.5 | 66.9 |
| CTS | 03′ – 07′ | 5×115 | 12×1.5 | 70.3 |
| CTS | 08′ – 19′ | 5×120 | 14×1.5 | 66.9 |
| CTS V | 04′ – 07′ | 6×115 | 12×1.5 | 70.3 |
| CTS V | 09′ – 19′ | 5×120 | 14×1.5 | 66.9 |
| DeVille | 59′ – 70′ | 5×5″ / 5×127 | 1/2″ | 78.3 |
| DeVille | 85′ – 05′ | 5×115 | 12×1.5 | 70.3 |
| DTS | 06′ – 11′ | 5×115 | 12×1.5 | 70.3 |
| DTX | 97′ – 99′ | 5×115 | 12×1.5 | 70.3 |
| ELDORADO | 79′ – 85′ | 5×4.75″ / 5×120.7 | 12×1.5 | 70.3 |
| ELDORADO | 86′ – 03′ | 5×115 | 12×1.5 | 70.3 |
| ELR | 14′ – 16′ | 5×115 | 12×1.5 | 70.3 |
| FLEETWOOD | 85′ – 92′ | 5×115 | 12×1.5 | 70.3 |
| FLEETWOOD | 93′ – 96′ | 5×5″ / 5×127 | 1/2″ | 78.3 |
| SEVILLE | 76′ – 80′ | 5×4.75″ / 5×120.7 | 7/16″ | 70.3 |
| SEVILLE | 86′ – 04′ | 5×115 | 12×1.5 | 70.3 |
| STS | 05′ – 11′ | 5×115 | 12×1.5 | 70.3 |
| STS-V | 05′ – 09′ | 6×115 | 12×1.5 | 70.3 |
| XLR | 04′ – 09′ | 5×4.75″ / 5×120.7 | 12×1.5 | 70.3 |
| XLR-V | 06′ – 09′ | 5×4.75″ / 5×120.7 | 12×1.5 | 70.3 |
| XTS | 13′ – 19′ | 5×120 | 14×1.5 | 66.9 |
Cadillac Wheel Spacers (SUVs)
| Model | YEAR | BOLT PATTERN | STUD SIZE | HUB DIAMETER |
| ESCALADE | 1998+ | 6×5.5 / 6×139.7 | 14×1.5 | 78.1 |
| SRX | 04′ – 09′ | 6×115 | 12×1.5 | 70.3 |
| SRX | 2010+ | 6×120 | 14×1.5 | 66.9 |
| XT4 | 2019+ | 5×120 | 14×1.5 | 66.9 |
| XT5 | 2017+ | 6×120 | 14×1.5 | 66.9 |
| XT6 | 2020+ | 6×120 | 14×1.5 | 66.9 |

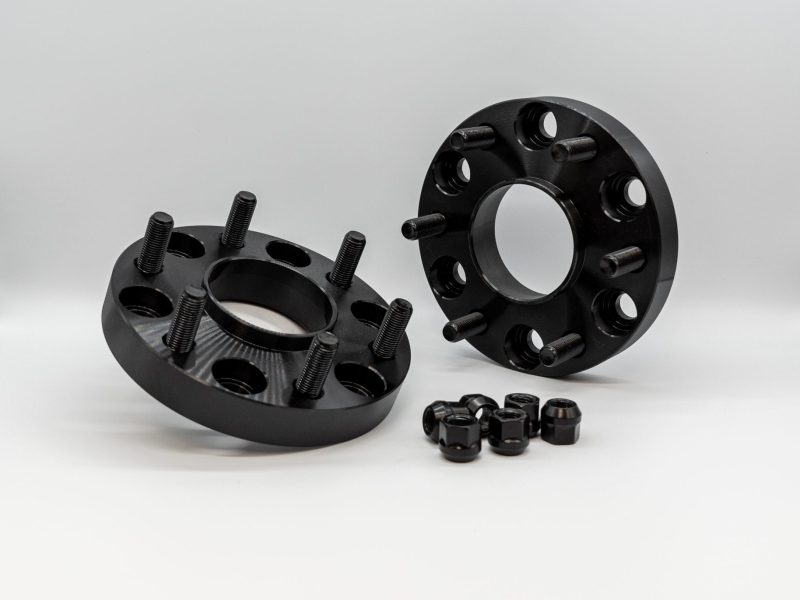

US Wheel Adapters stocks pre-built Cadillac wheel spacers for cars and SUVs. We also custom build slip-on and bolt-on hub centric wheel spacers using all American machinery, materials, and hardware. Hub centric wheel spacers will always be our #1 recommendation. Hub Centric wheel spacers fit male-female and insure the wheel centers perfectly on the hub of the vehicle.
Use the links below to browse wheel spacers for your model vehicle.
or give our experts a call at: 1-877-823-2787
